Handrail Tube Post

Material: Stainless Steel SS316, 50.8mm OD, 1.6mm wall thickness, satin finish

Length: 900mm/1200mm

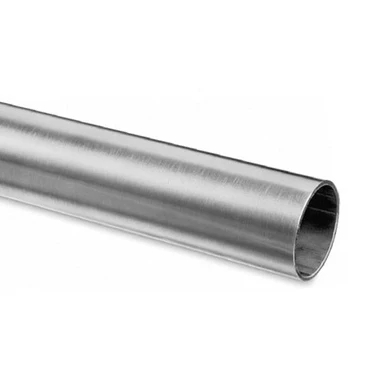

Handrail Tube

Material: Stainless Steel SS316, 38.1mm OD, 1.6mm wall thickness, satin finish

Length: 3000mm

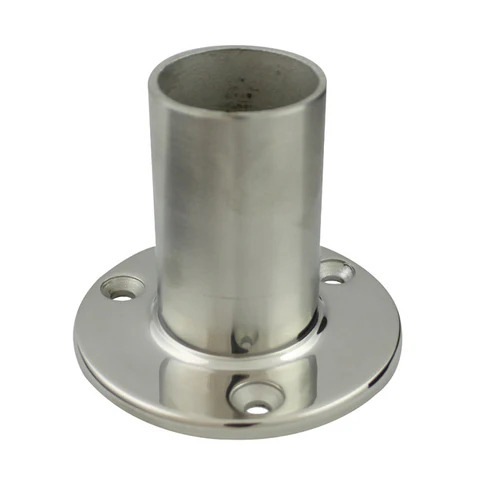

Long Base Plate, 3 Hole, 1.6x50mm tube, Satin

SS316 stainless steel Long Base Plates fits into 50.8mm tube posts. The screw holes can be covered with satin finish cover plates

Cover Plate, 50.8mm tube, Satin Finish

Stainless Steel SS316 for maximum corrosion resistance to suit long base plate

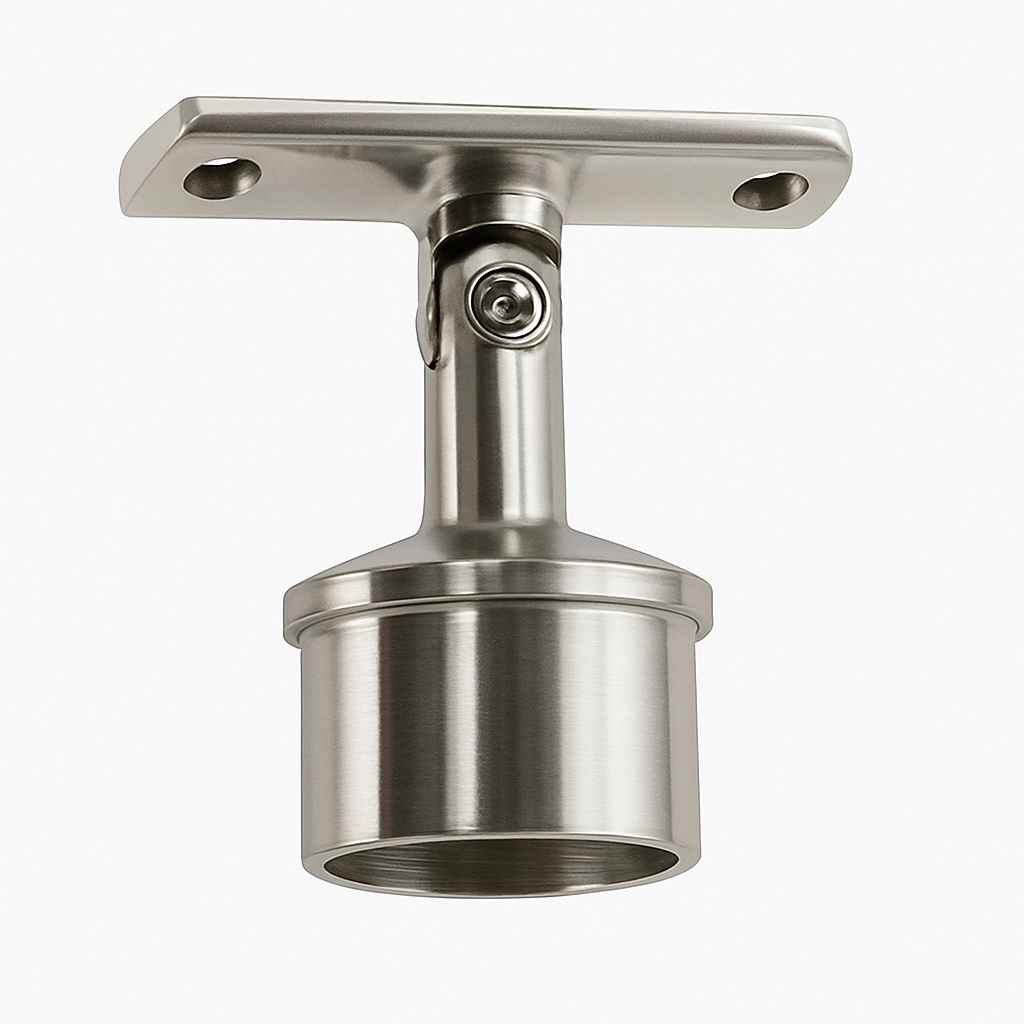

Adjustable Post Saddle, Round Top, 50.8mm x 1.6mm tube. Satin Finish

Inserts into the top of the 50.8mm post and provides adjustable support for 38.1mm diameter tube. The Angle can be set and fix with the socket head fastener. Made from SS316 stainless steel for maximum corrosion resistance. Easy to install. Fasten the 38.1mm diameter handrail to the saddle with screws.

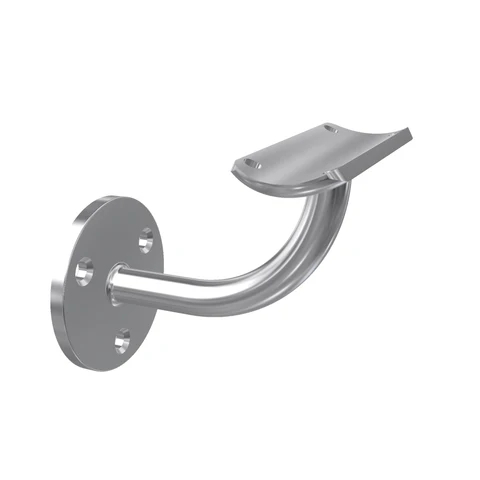

90° Curved Handrail Bracket, Round Top 38.1mm Satin Finish

Stainless Steel SS316 handrail bracket for wall attachment have 3 holes in the base and four holes in the handrail support for 38.1mm diameter handrail tube.

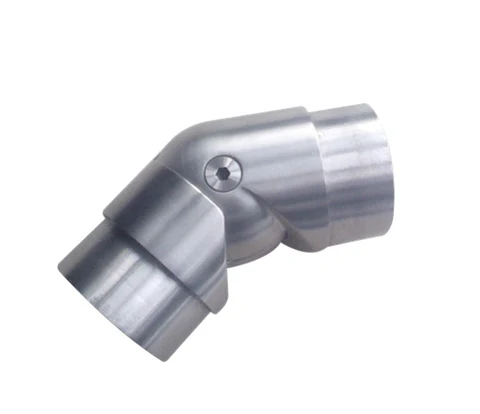

Adjustable Elbow Joiner - Ball Type Satin Finish

Fitting for 38.1mm diameter handrail tube. The elbow can be adjusted from 90 to 180 degrees. Stainless Steel S316 for maximum corrosion resistance. Designed to allow angle changes for 38.1mm diameter handrail at staircases, steps and slopes.

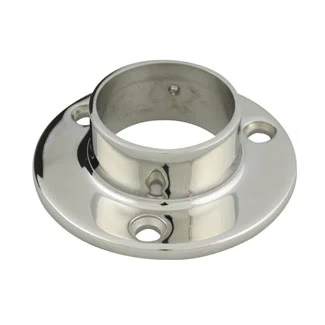

Round Wall Plate, 3 Hole, 38.1mm tube, Satin Finish

Round Wall Plate, with 3 holes to suit 38.1mm diameter tube. Use for support to vertical surfaces. Stainless Steel SS316 for maximum corrosion resistance.

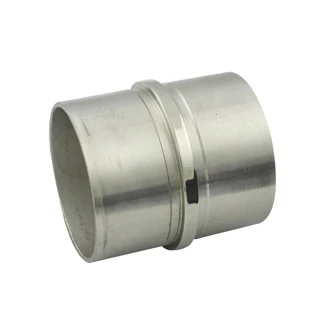

Straight Tube Joiner 38.1mm Satin Finish

Stainless Steel SS316 handrail end cap to be use with 38.1mm diameter handrail tube.

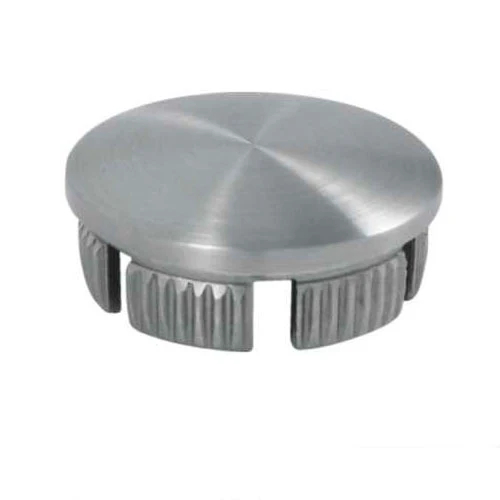

End Cap for 38.1mm tube Satin Finish

Stainless Steel SS316 handrail end cap to be use with 38.1mm diameter handrail tube.

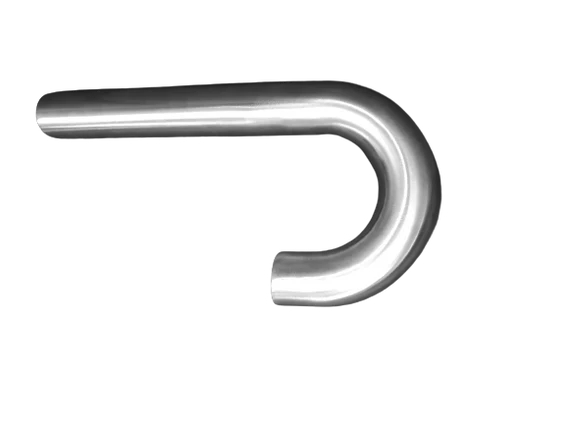

Extended Elbow Fitting Satin Finish

S316 stainless steel 180° extended end fitting, used at the ends of 38.1mm handrail. Length 400mm x Width 210mm.
